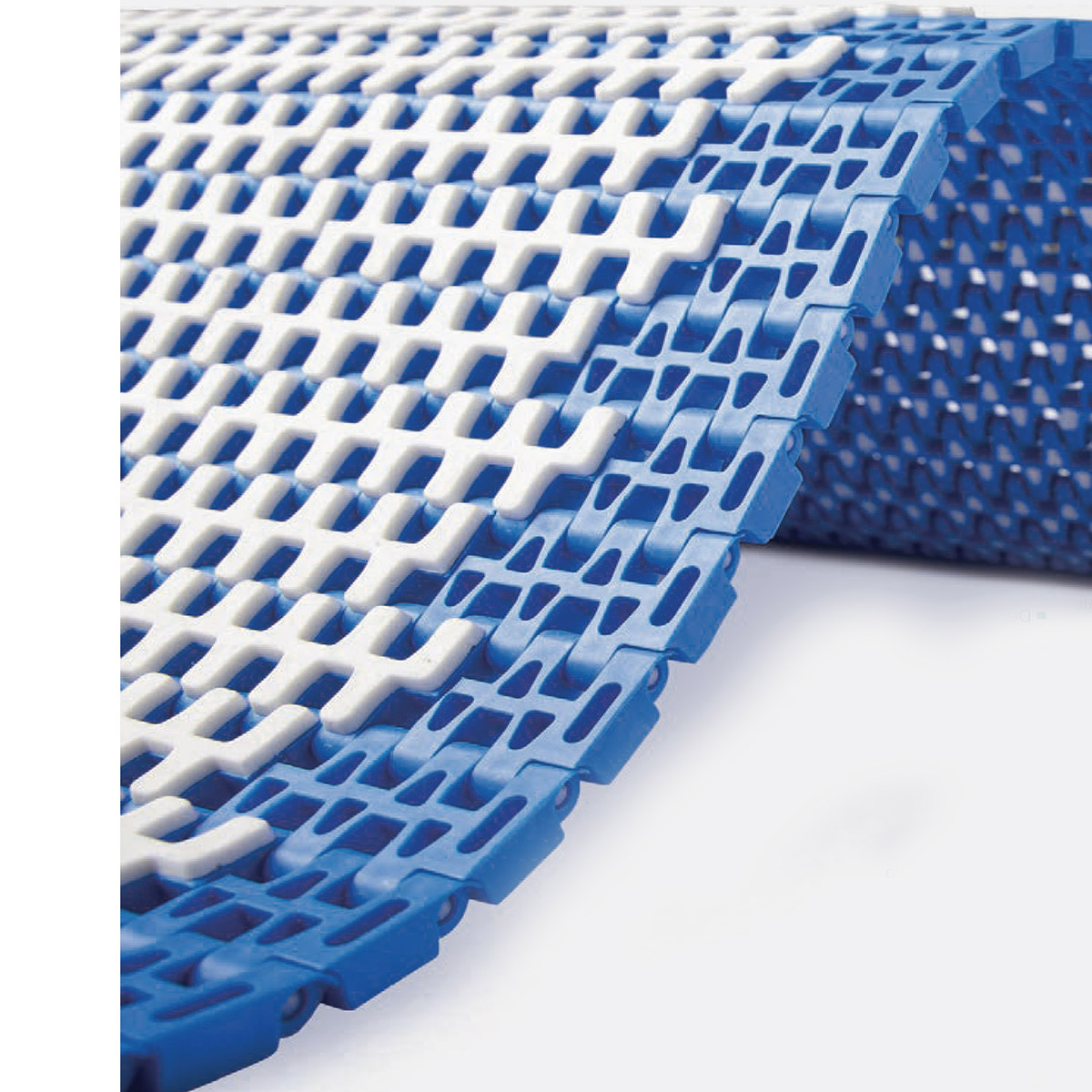

1 Inch - 25,4 mm
Modular Belt Series

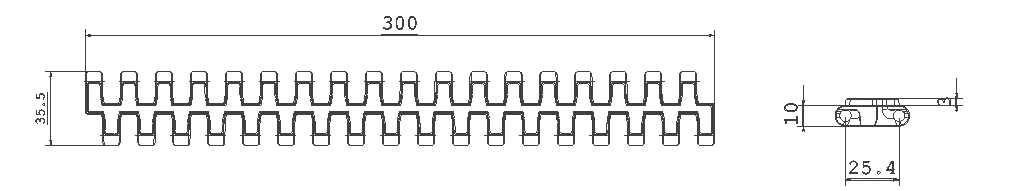

| Pitch: | 25,4 mm / 1 inch |
| Belt Surface: | Open, Smooth Surface |
| Minimum Width: | 50 mm / 1.97 inch |
| Open Area (%): | 35% |
| Flight: | Yes |
| Sidewall: | Yes |
| Pin: | Ø 5 mm / 0.197 inch - Self Lock |
| Approved: | FDA and EU |
| Color: | Blue / White |
| Cleanability: | Good |
| Belt Thickness: | 10 mm / 0.394 inch |
WB-25-GR
Technical Information
| Belt Strength | POM | POM | POM | PP | PP | PE |
| Pin Material | PA | POM | PP | PP | POM | POM |
| Belt Strength | N/m I lb/ft | 24700 - 1692 | 24700 - 1692 | 18000 - 1233 | 14000 - 959 | 14000 - 959 | 9000 - 617 |
| Temperature | ˚C ˚F |
-40 / +93 -40 / +200 |
-40 / +93 -40 / +200 |
+5 / +93 +40 / +200 |
+5 / +105 +40 / +220 |
+5 / +93 +40 / +200 |
-40 / +65 +40 / +150 |
| Belt Weight | kg/m² I lb/sqft² | 7.1 / 1.45 | 7.1 / 1.45 | 7.1 / 1.45 | 4.6 / 0.94 | 4.6 / 0.94 | 5.1 / 1.04 |
| Diameter of idling rollers (min.) | Diameter of support rollers (min.) | Diameter for gravity take up center drive rollers (min.) | Backbending radius for elevators without side guards or hold down devices (min.) | Backbending radius for elevators with side guards or hold down devices (min.) | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch |
| 50 | 2 | 50 | 2 | 100 | 4 | 150 | 6 | 250 | 10 |
| Belth Width mm | 50,0 | 100,0 | 150,0 | 200,0 | 250,0 | 300,0 | 350,0 | 400,0 | 450,0 | 500,0 | 550,0 | 600,0 | 650,0 | 700,0 | 750,0 |
| Belth Width inch | 1.97 | 3.94 | 5.91 | 7.87 | 9.84 | 11.81 | 13.78 | 15.75 | 17.72 | 19.69 | 21.65 | 23.62 | 25.59 | 27.56 | 29.53 |
| Belth Width mm | 800,0 | 850,0 | 900,0 | 950,0 | 1000,0 | 1050,0 | |||||||||
| Belth Width inch | 31.50 | 33.46 | 35.43 | 37.40 | 39.37 | 41.34 |
WB-25-GR
- Meyve ve Sebze sektöründe
- Dondurulmuş ürünler sektöründe
- Deniz ürünleri sektöründe
- Et ürünleri sektöründe
- Turşu üretim sektöründe
- Konserve sektöründe
- Meşrubat sektöründe
