1 Inch - 25,4 mm
Modular Belt Series

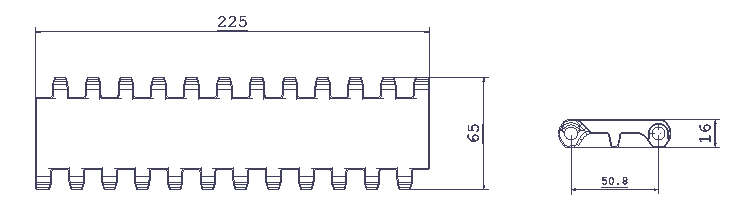

| Pitch: | 50,8 mm / 2 inch |
| Belt Surface: | Close, Smooth Surface |
| Minimum Width: | 225 mm / 8.86 inch |
| Open Area (%): | 0% |
| Flight: | No |
| Sidewall: | No |
| Pin: | Ø 7 mm / 3.6285 inch - Self Lock |
| Approved: | FDA and EU |
| Color: | Blue / White |
| Cleanability: | Excellent |
| Belt Thickness: | 16,5 mm / 1.54 inch |

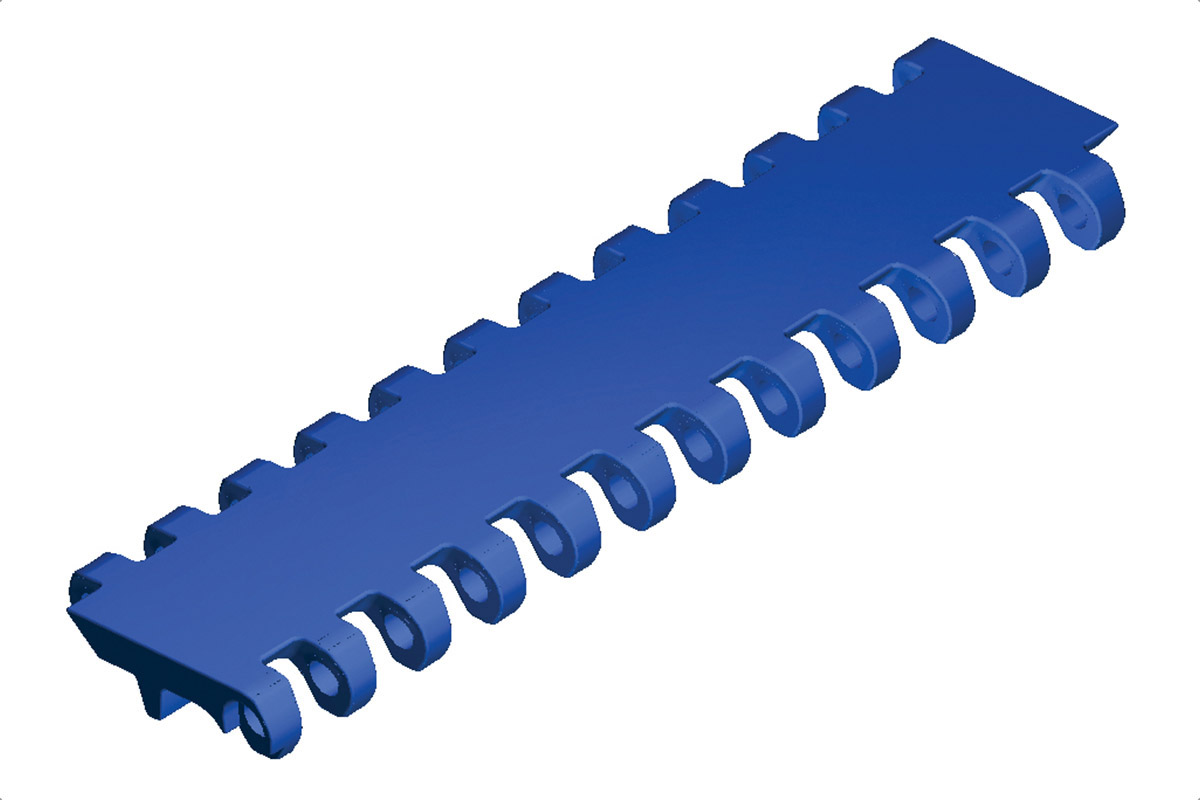

WB-50-FT
Technical Information
| Belt Strength | POM | POM | POM | POM | PE | PE |
| Pin Material | POM | PA | PBT | PE | POM | PE |
| Belt Strength | N/m I lb/ft | 30000 - 2055 | 30000 - 2055 | 30000 - 2055 | 18000 - 1233 | 10000 - 685 | 26400 - 685 |
| Temperature | ˚C ˚F |
-40 / +93 -40 / +200 |
-40 / +93 -40 / +200 |
-40 / +93 -40 / +200 |
-40 / +65 -40 / +150 |
-40 / +65 -40 / +150 |
-70 / +65 -50 / +150 |
| Belt Weight | kg/m² I lb/sqft² | 13.5 / 2.77 | 13.5 / 2.77 | 13.5 / 2.77 | 13.5 / 2.77 | 9.4 / 1.93 | 9.4 / 1.93 |
| Diameter of idling rollers (min.) | Diameter of support rollers (min.) | Diameter for gravity take up center drive rollers (min.) | Backbending radius for elevators without side guards or hold down devices (min.) | Backbending radius for elevators with side guards or hold down devices (min.) | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch |
| 90 | 3.5 | 100 | 4 | 150 | 6 | - | - | - | - |
| Belth Width mm | 406,4 | 457,2 | 508,0 | 609,6 |
| Belth Width inch | 16 | 18 | 20 | 24 |
WB-50-FT
- Meyve ve Sebze sektöründe
- Dondurulmuş ürünler sektöründe
- Deniz ürünleri sektöründe
- Et ürünleri sektöründe
- Turşu üretim sektöründe
- Konserve sektöründe
- Meşrubat sektöründe
