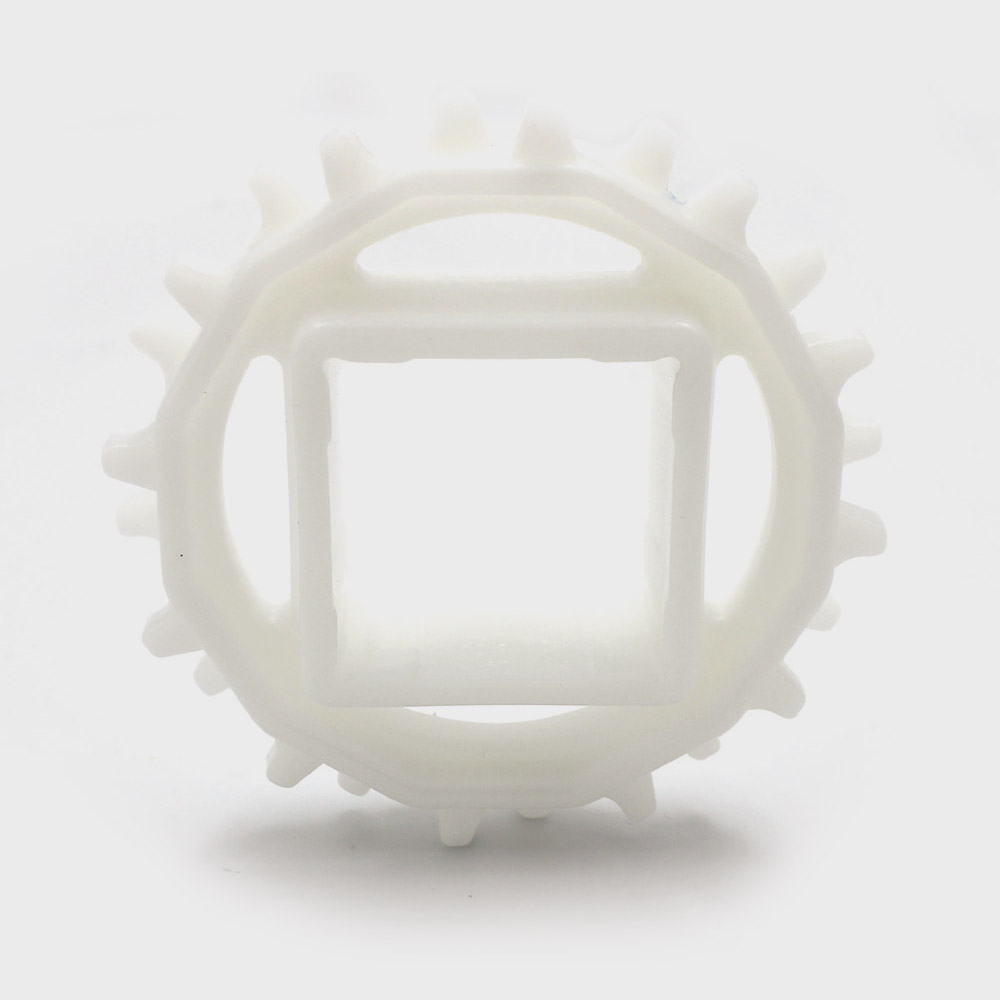

WB-25 Serisi / Standart Dişli Ölçüler, Bursa / Wowbelt

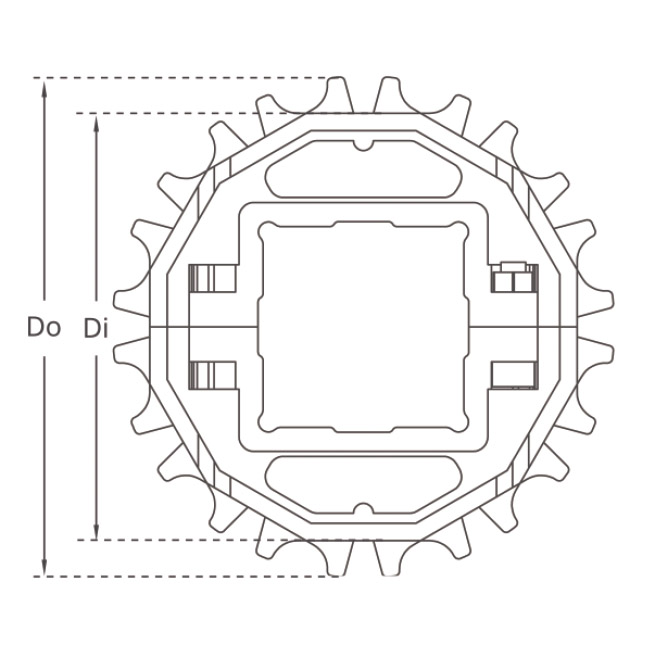

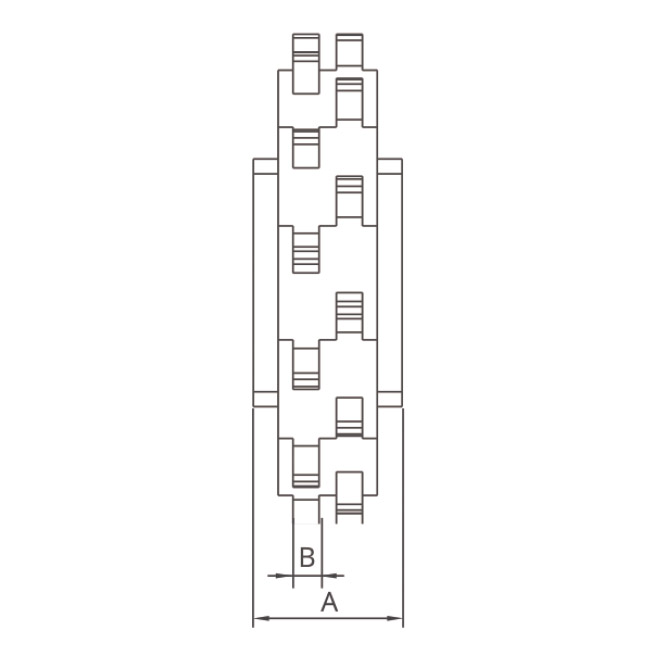

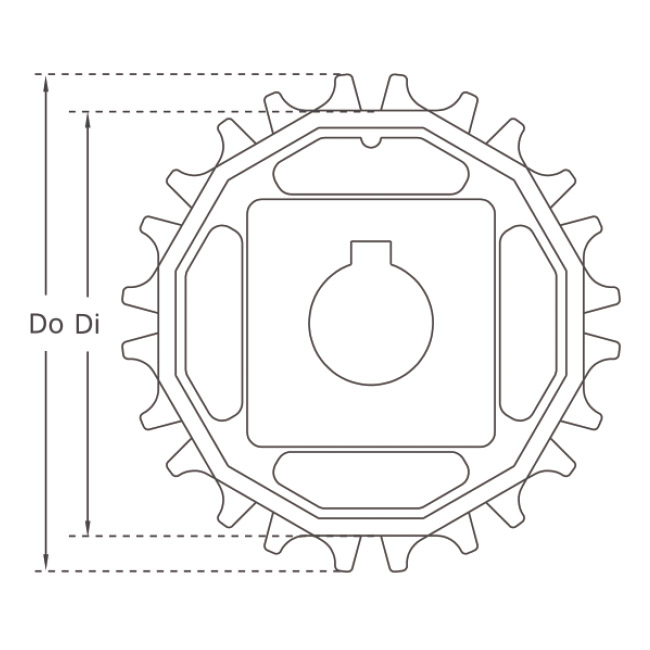

PRODUCT CODE		NO. TEETH	Di mm/inch	Do mm/inch	B mm/inch	A mm/inch	Square Bore (Q) mm/inch		Round Bore (R) mm/inch
Square Type (Q)	Round Type (R)	NO. TEETH	Di mm/inch	Do mm/inch	B mm/inch	A mm/inch	Square Bore (Q) mm/inch		Round Bore (R) mm/inch
WB-25-40X40Z12 POM	WB-25-40X40Z12 POM	WB-25 40X40Z12	85,8 / 3.38	100,8 / 3.97	5,3 / 0.21	30,0 / 1.18	40	1.5	25-30-35	1-1.25
WB-25-40X40Z12-K POM	WB-25-40X40Z12-K POM	WB-25 40X40Z12-K	85,8 / 3.38	100,8 / 3.97	5,3 / 0.21	30,0 / 1.18	40	1.5	25-30-35	1-1.25
WB-25-40X40Z16 POM	WB-25-40X40Z16 POM	WB-25 40X40Z16	119,1 / 4.69	134,1 / 5.28	5,3 / 0.21	30,0 / 1.18	40	1.5	25-30-35	1-1.25
